01
Multi-phase temporary signals
Portable signal schemes for two, three and four-way phasing, with detection, timings and staging that keep traffic moving through the works.
PhasingDetectionStaging
Traffic Management CAD & Planning
Council-ready traffic plans, approved the first time.
Chapter 8 and TSRGD-compliant CAD drawings for closures, phased signals and events, delivered in 24 hours, nationwide.
- 24h
- Standard drawing turnaround
- 10+ yrs
- In UK traffic management
- First time
- Approval rate we design for
- Nationwide
- Councils and contractors served
What we draw
Every scheme a highways team will wave through.
02
Road closures & diversions
Full and rolling closures with signed diversion routes drawn to Chapter 8.
Signed routes
03
Pedestrian safety schemes
Protected walkways, crossings and segregation that keep the public safe on site.
Walkways
04
Event traffic management
Access, cordons and stewarding plans for festivals, races and civic events, coordinated with the local authority from first submission.
CordonsAccessStewarding
Three promises the whole studio is built around.
01
Fast
Most drawings back within 24 hours.
Tender deadlines, permit windows and start dates hold, because the plans are never the thing you are waiting on.
02
Accurate
Drawn to scale from current site data.
Real measurements, correct signage and honest sightlines, so what is on the paper is what works on the ground.
03
Compliant
Chapter 8 and TSRGD as the baseline.
Compliance is built in from the first line, which is why councils sign the drawings off the first time they see them.
Selected work
Live schemes, drawn and signed off across the UK.

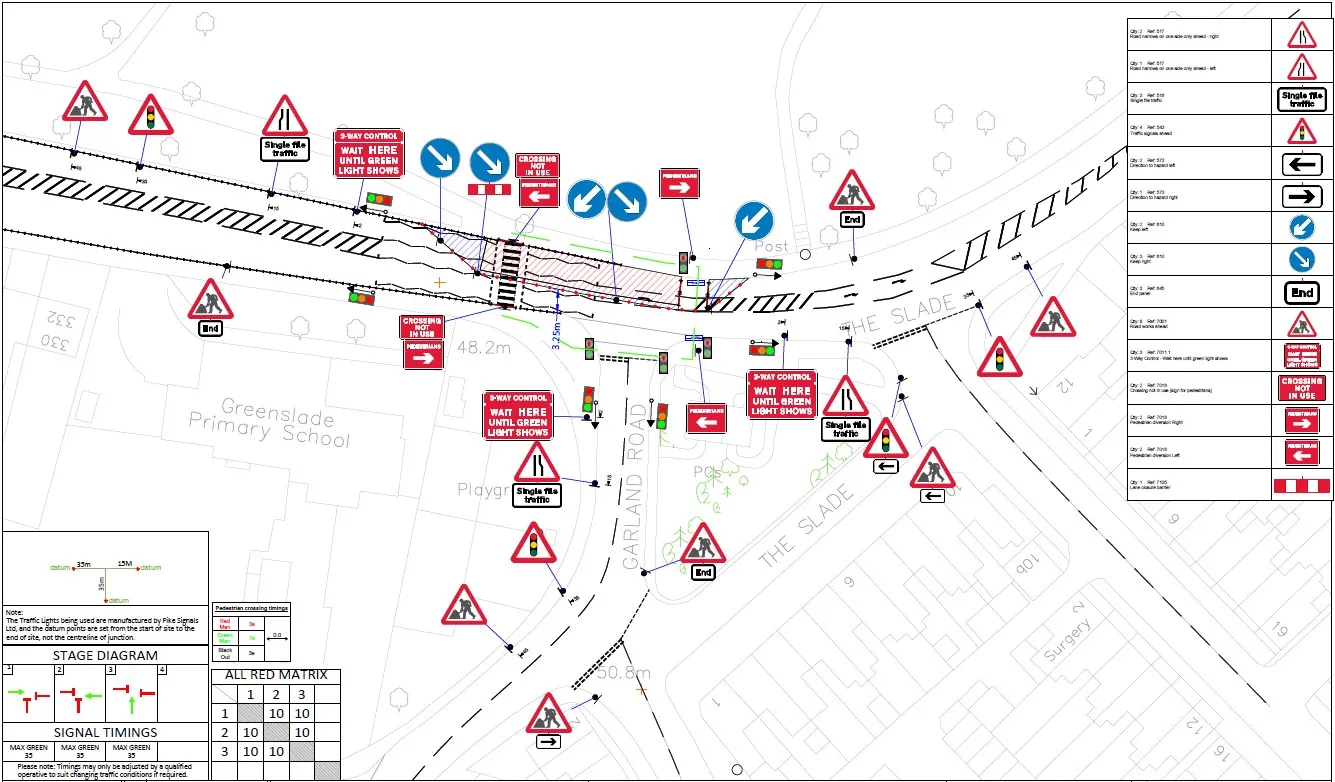

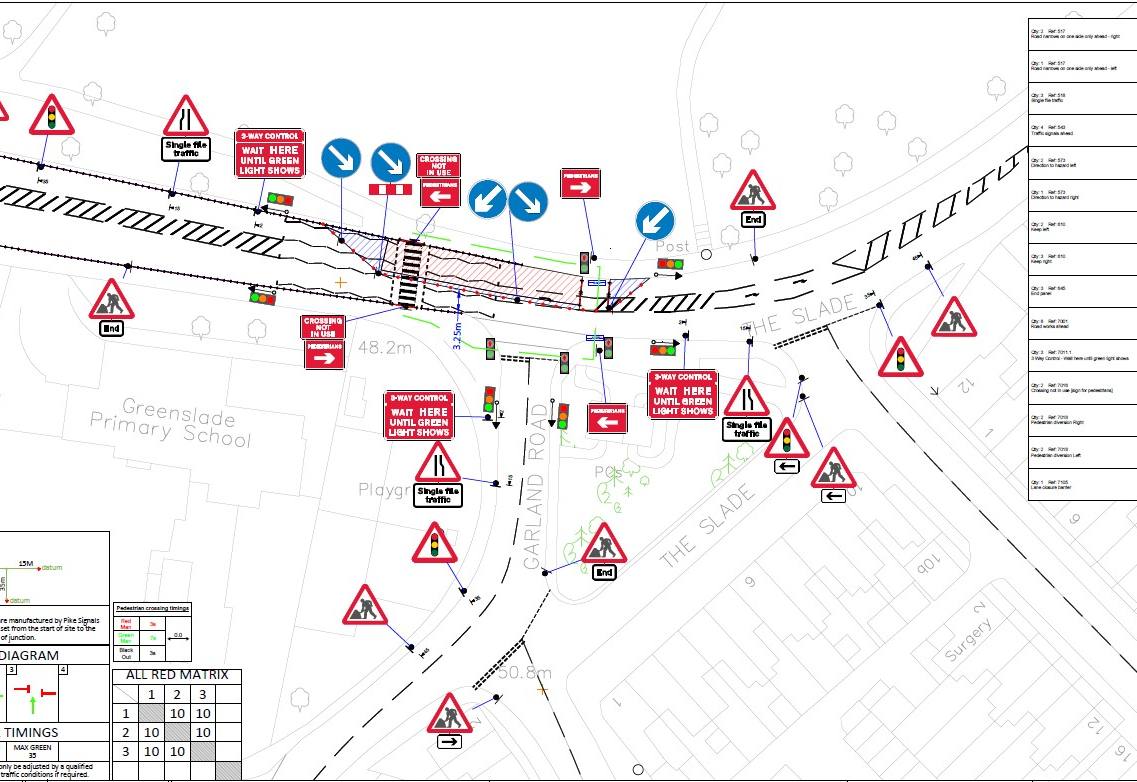

Multi-phase traffic lights & pedestrian crossingsThe Slade, Glyndon, SE18 2NE
Staged temporary signals with dedicated pedestrian crossing phases and a signed diversion route for resurfacing works on a residential road.

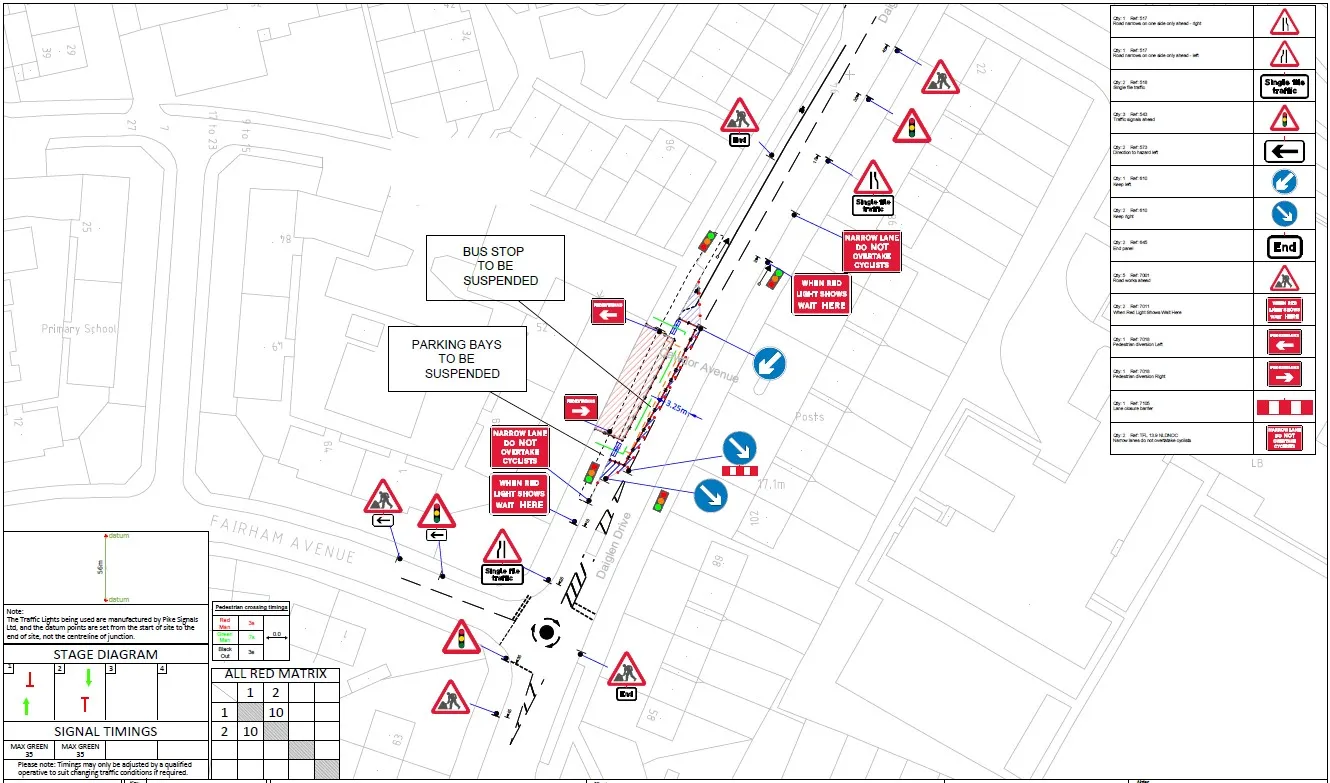

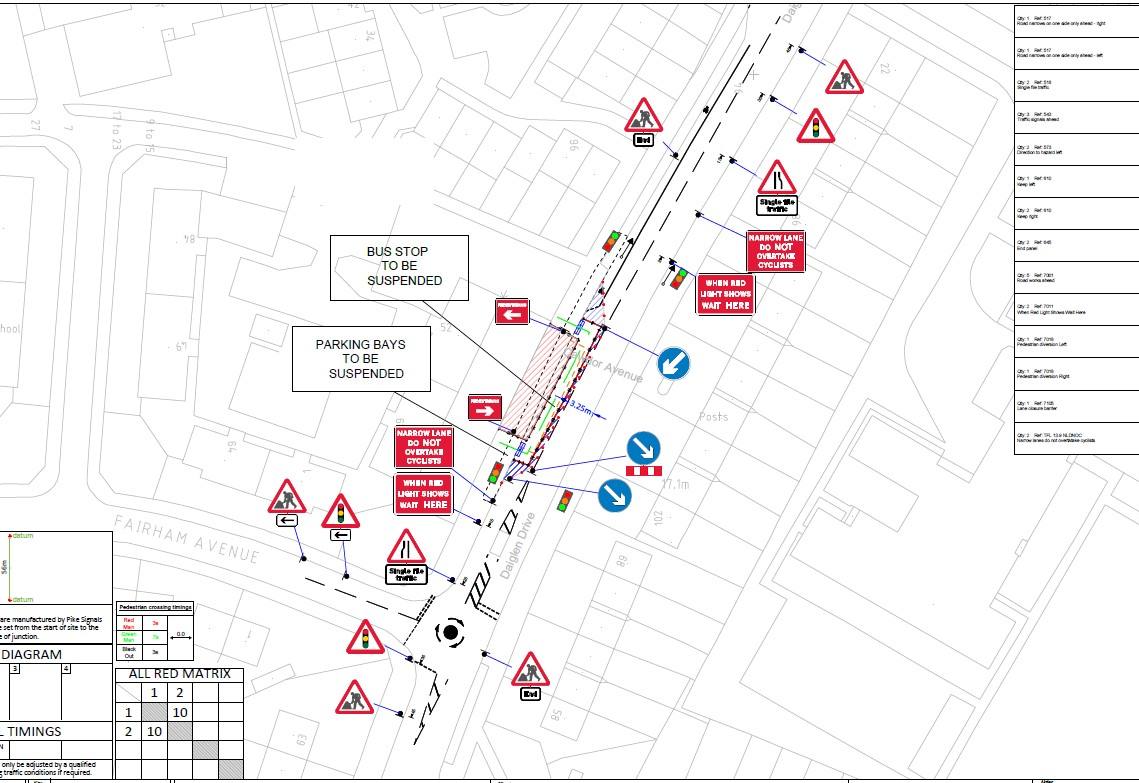

Multi-phase traffic lights & pedestrian crossingsDaiglen Drive, Thurrock, RM15 5RQ
Three-phase signal layout with footway closures, advance warning signage, and a temporary pedestrian route around a carriageway resurfacing scheme.

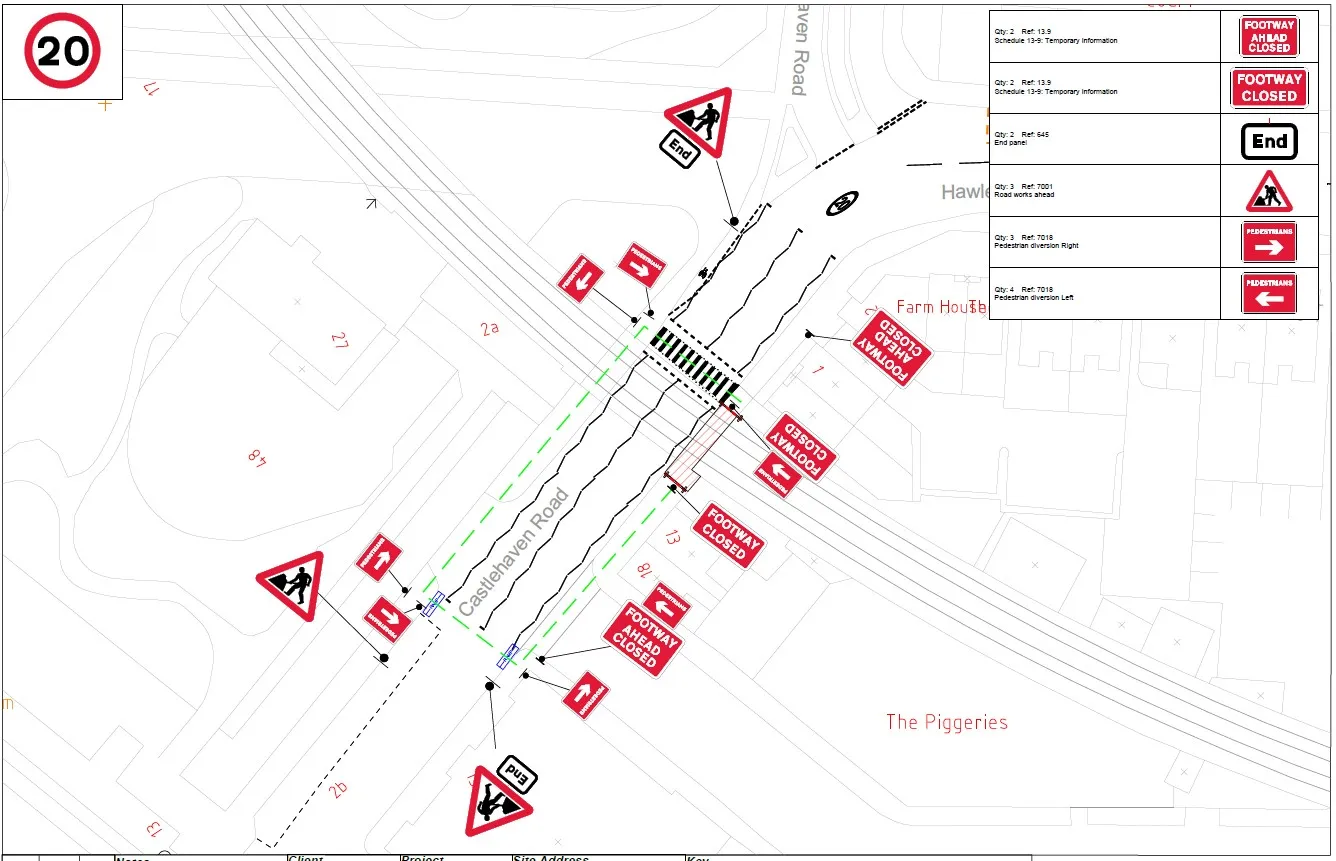

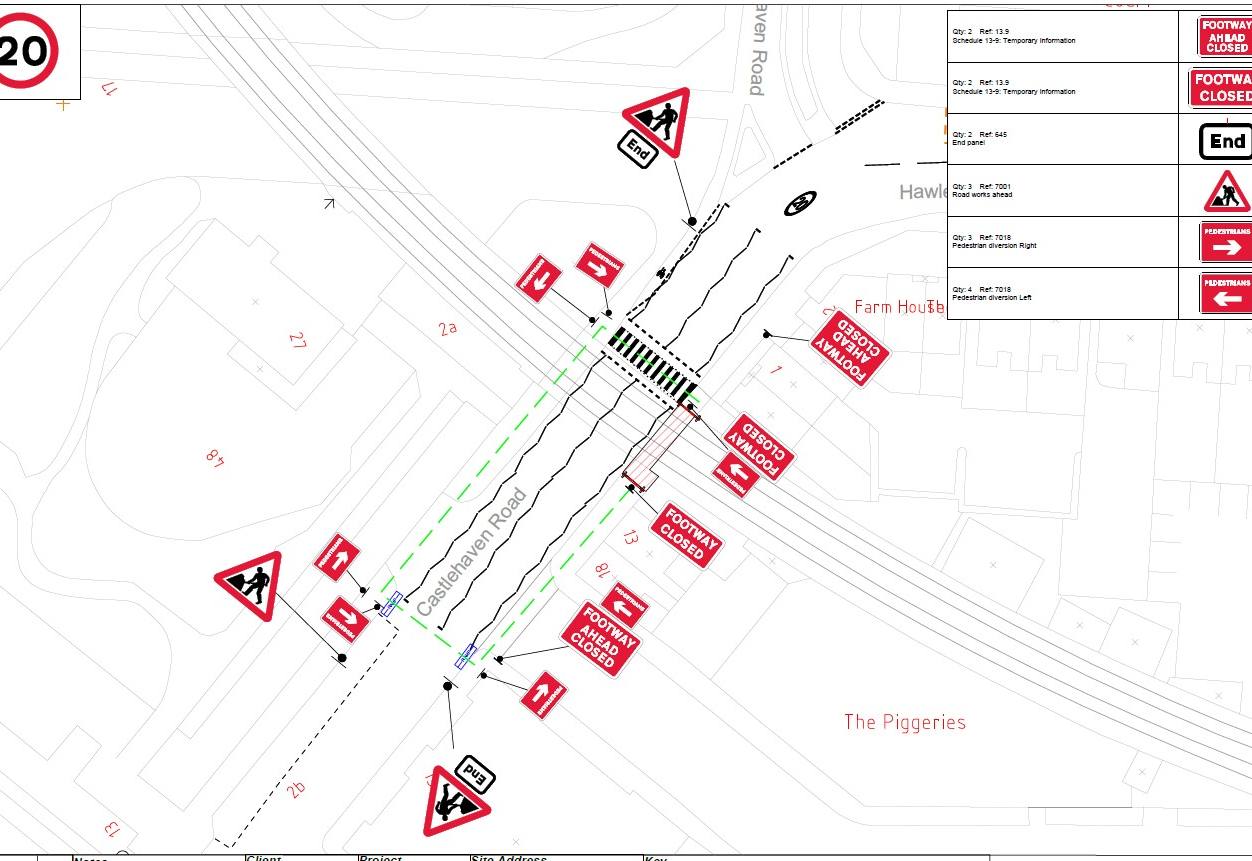

Pedestrian safety managementCastlehaven Road, London, NW1 8RA
Temporary footpath diversions, crossing points, and clear signage ensuring safe pedestrian access throughout construction works.

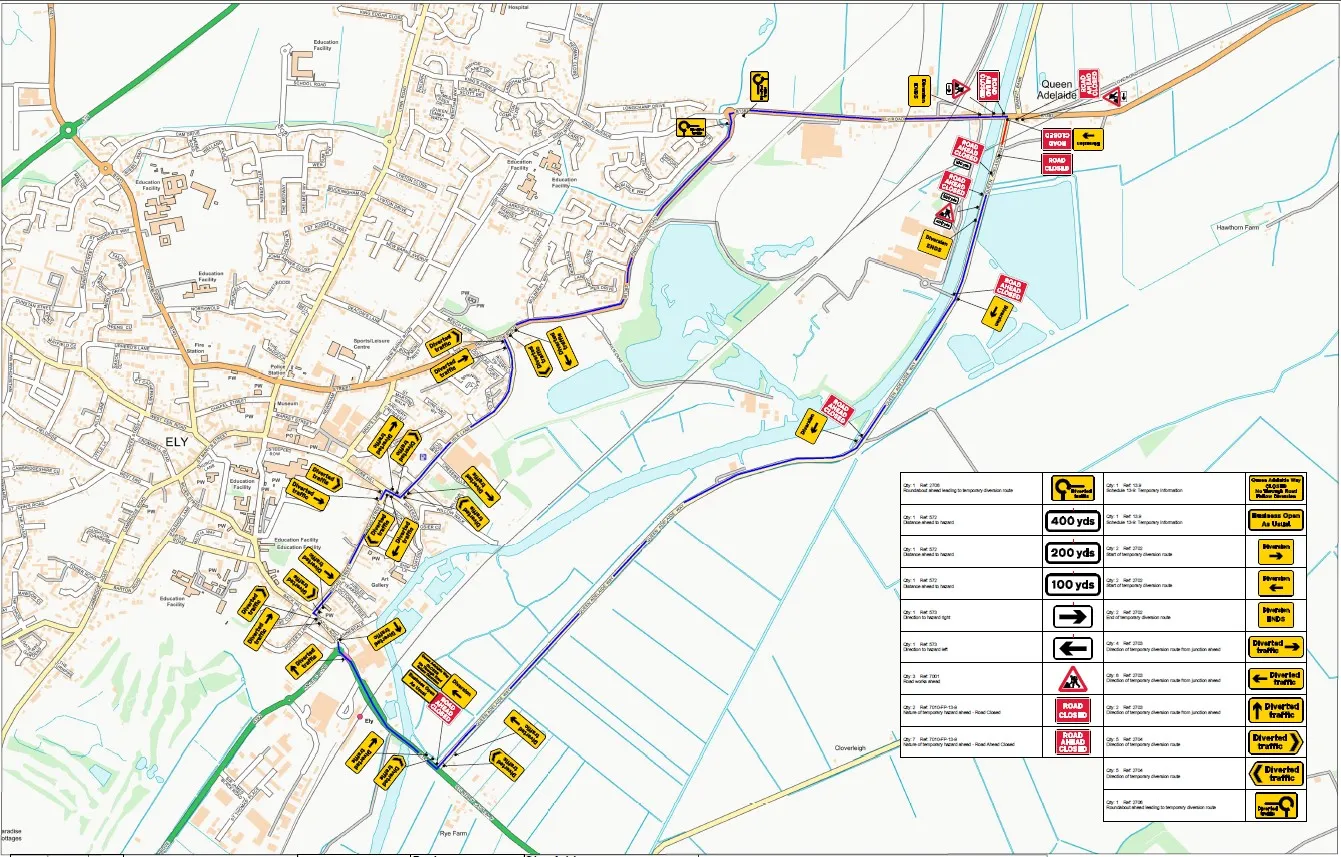

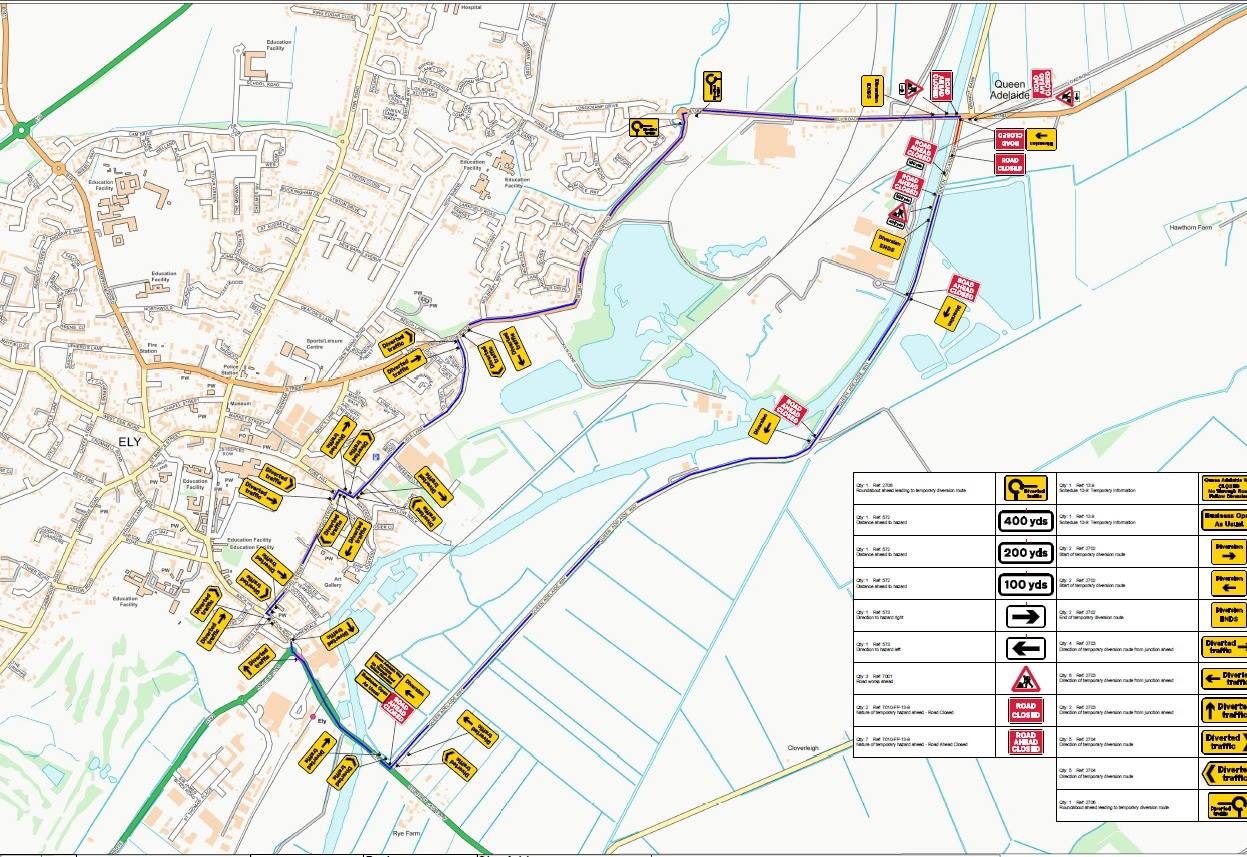

Road closure & diversionQueen Adelaide Way, Ely, Cambridgeshire, CB7 4TZ
Complete road closure plan with strategic diversion routing, advance warning signage placement, and coordinated traffic management for major highway works.

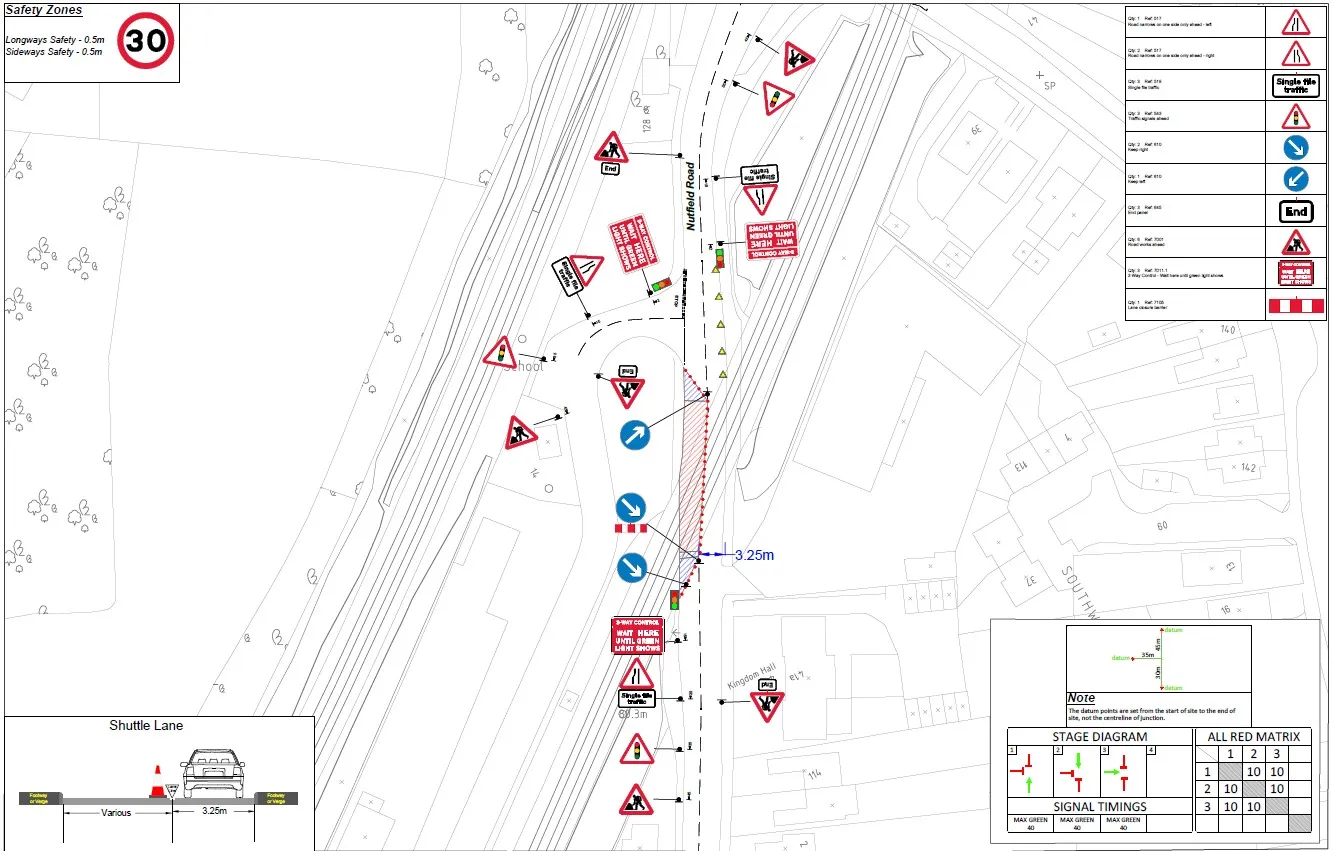

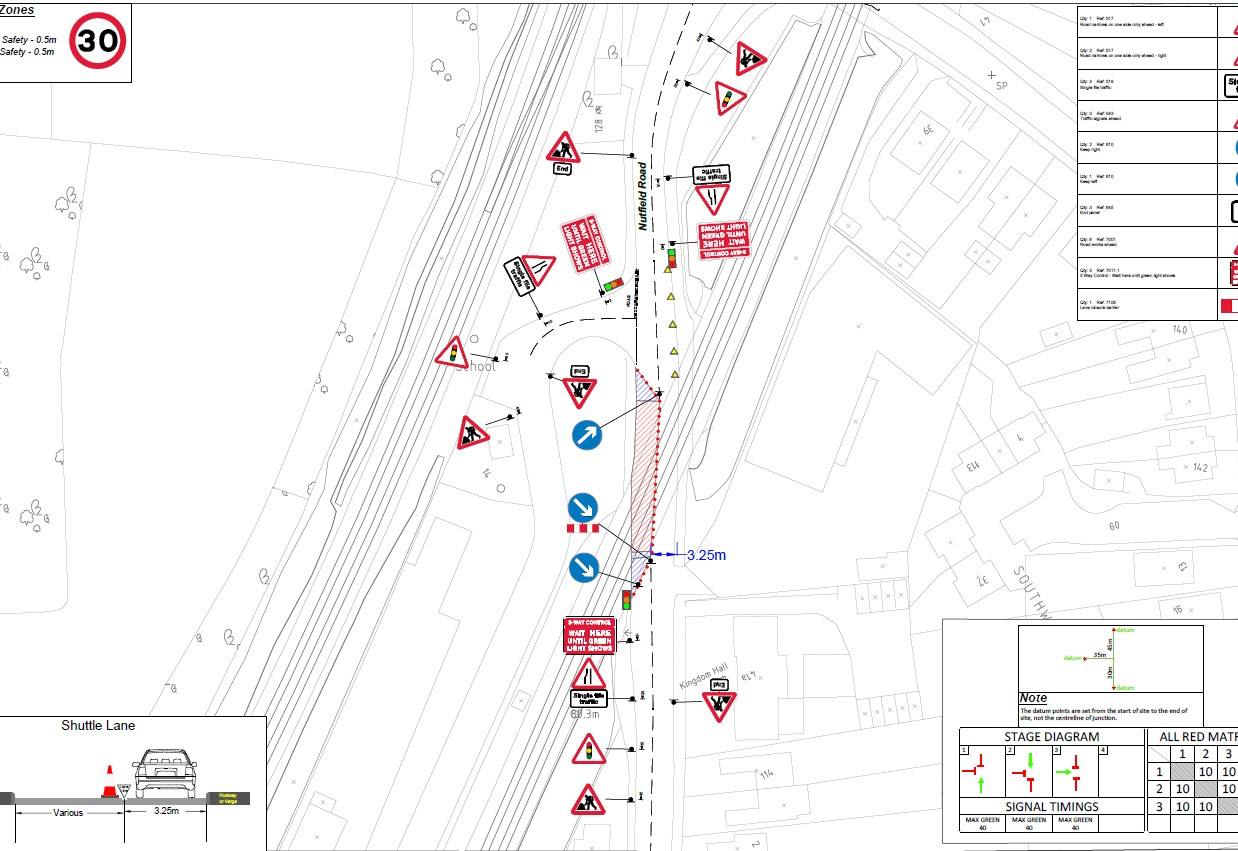

Multi-phase traffic lights with parking restrictionsEpping Road, Ongar, Epping Forest, Essex, CM5 0NA
Three-way traffic management plan with parking suspensions, a wide shuttle lane, and phased signals to keep traffic moving through the works.
Road closure & diversionCrawley Road, Cranfield, Bedford, MK43 0AA
Full closure scheme with signed diversion routes, advance warning boards, and maintained pedestrian access throughout the works period.
From a postcode to an approved drawing, in four moves.
- 01 / Send
Send us the site
Location, phasing, dates and any survey or plans you have. A photo and a postcode is often enough to start.
01 - 02 / Draw
We draw it to scale
Your scheme is produced as a full CAD drawing, correct to Chapter 8 and TSRGD from the first line.
02 - 03 / Refine
Review and refine
You review the draft and we adjust phasing, signage or routing until it fits the job exactly.
03 - 04 / Deliver
Council-ready pack
You receive a submission-ready drawing, formatted for the authority and built to be approved first time.
04
Compliance is the whole point, not the fine print.
In a high-stakes industry, a rejected drawing is a stalled site. We build every plan to the standards authorities check against, so approval is the expected outcome.
Chapter 8
Temporary traffic management drawn to the Traffic Signs Manual, Chapter 8.
TSRGD 2016
Signs and markings correct to the current regulations, every plan.
Lantra accredited
Trained and accredited to recognised UK industry standards.
10+ years
A decade of schemes that pass on first submission, nationwide.
Let's get your drawings approved.
Send the scheme and we'll come back with a quote and a turnaround, usually the same day.
Call the studio+44 7402 590790 navistmplanning@gmail.com- Reply within one working hour
- 24-hour drawing turnaround
- No-obligation quote
